One Robot, Multi-Purpose

Projected Delivery:
6 Months Upon Confirmation

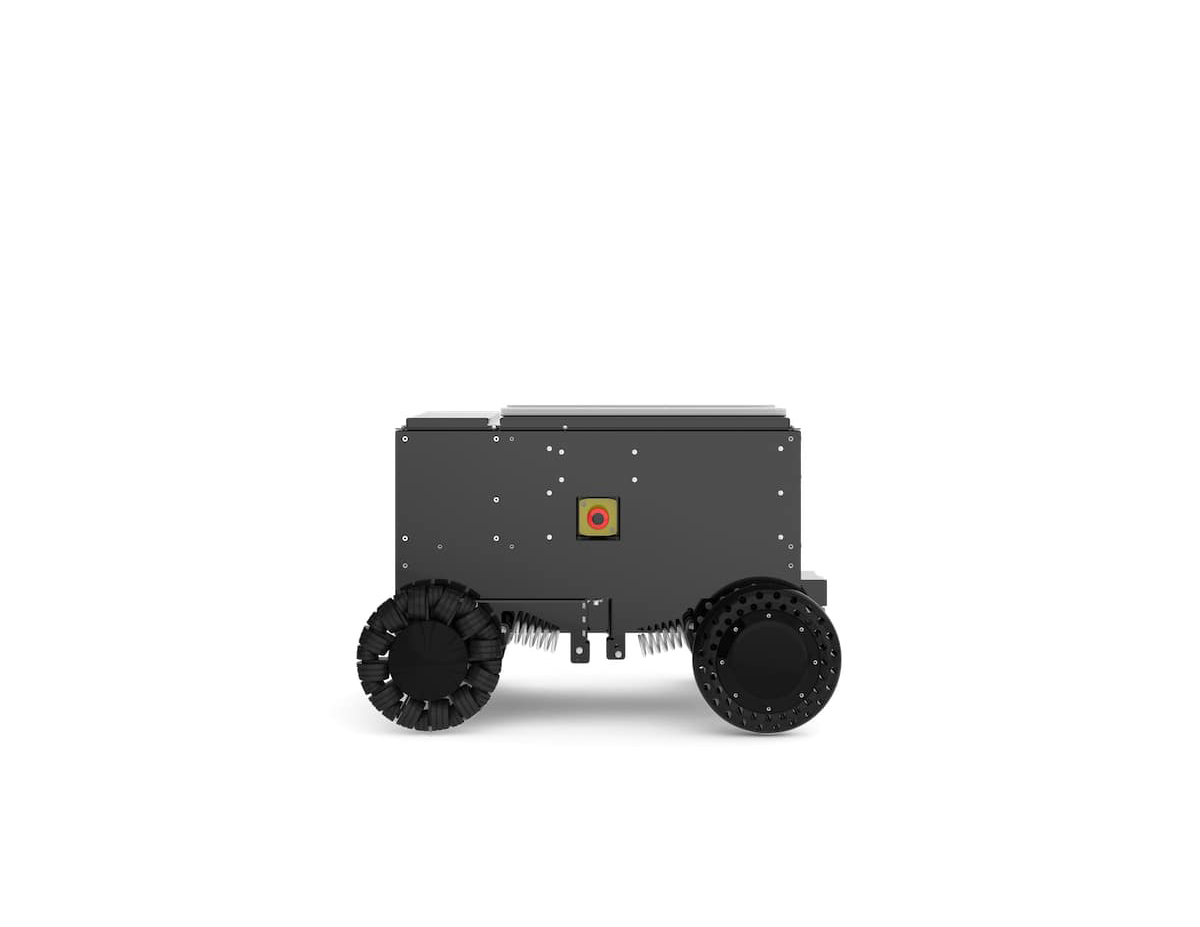

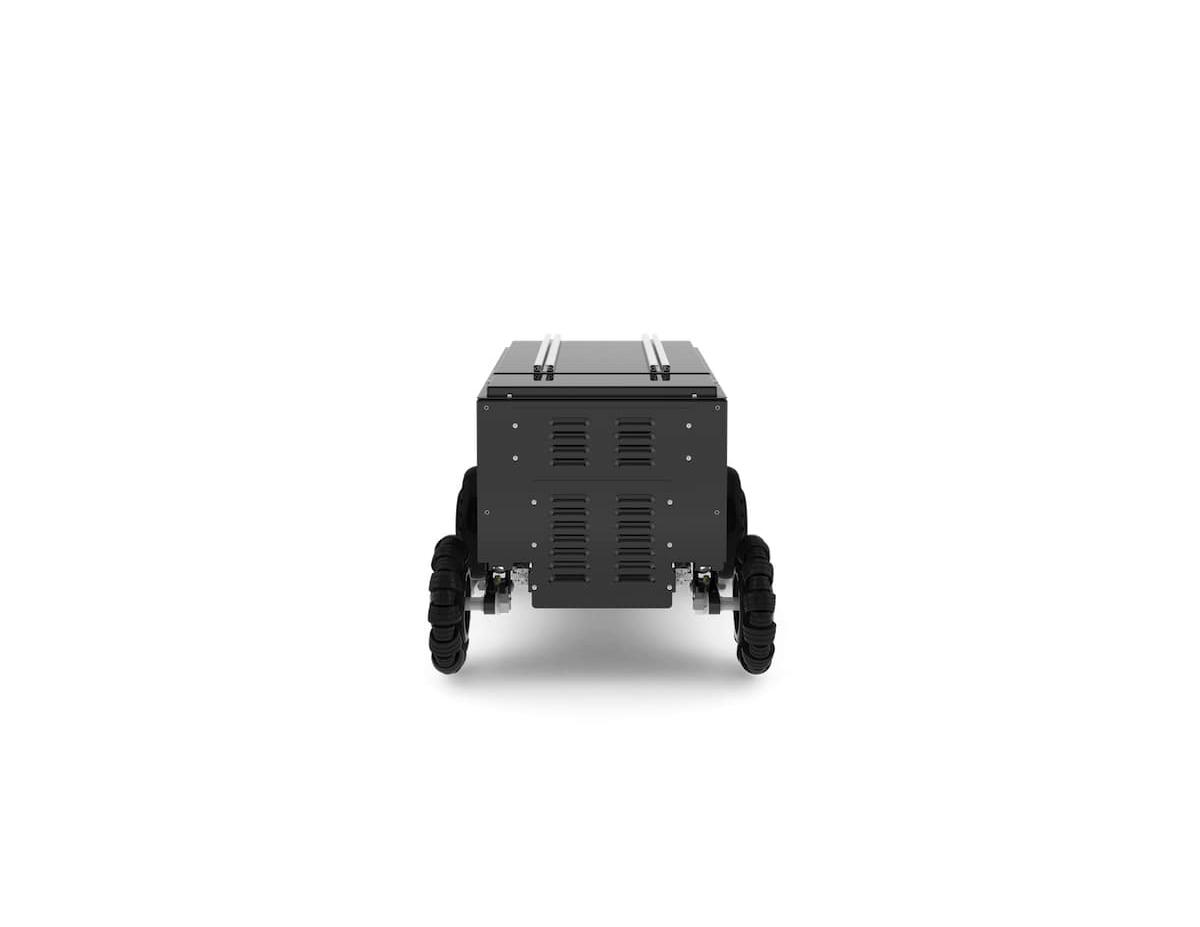

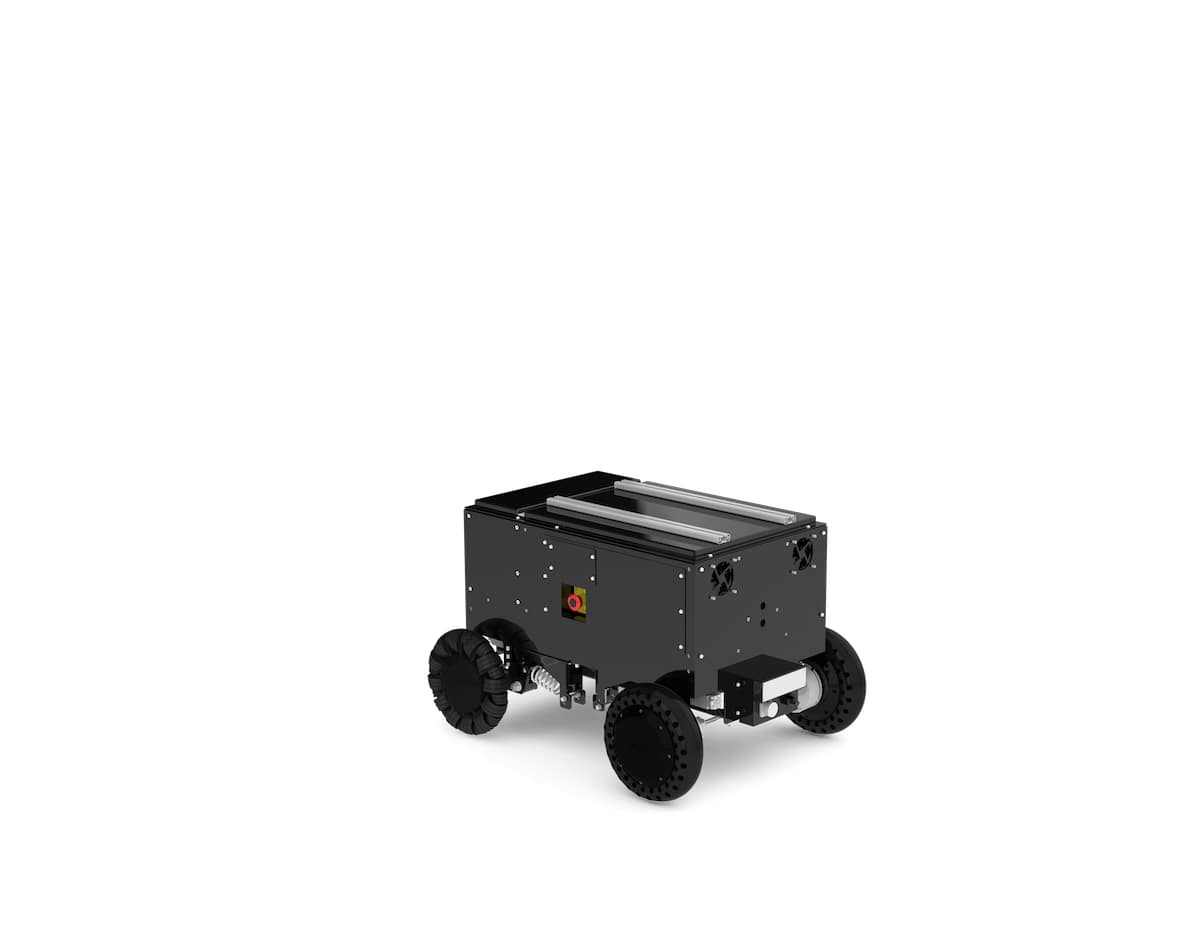

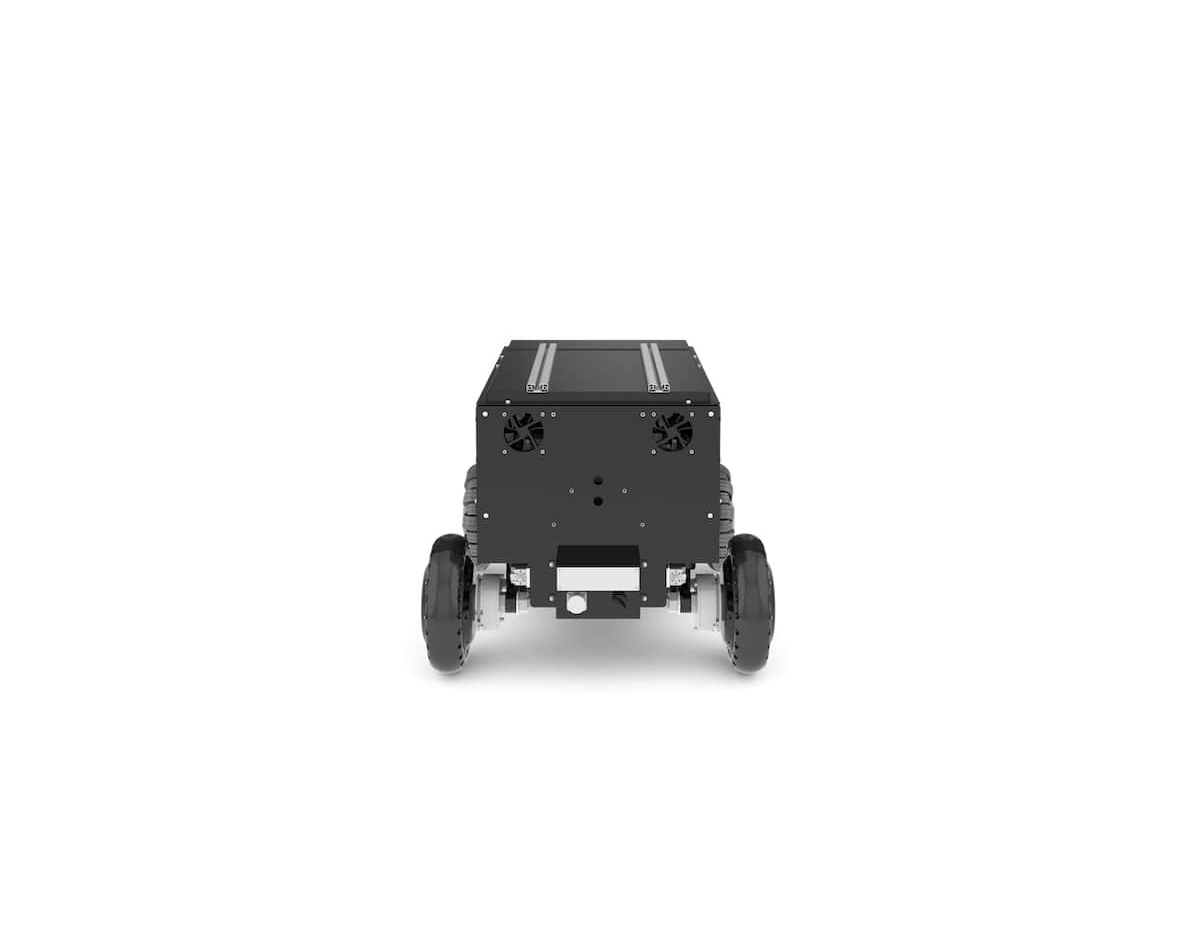

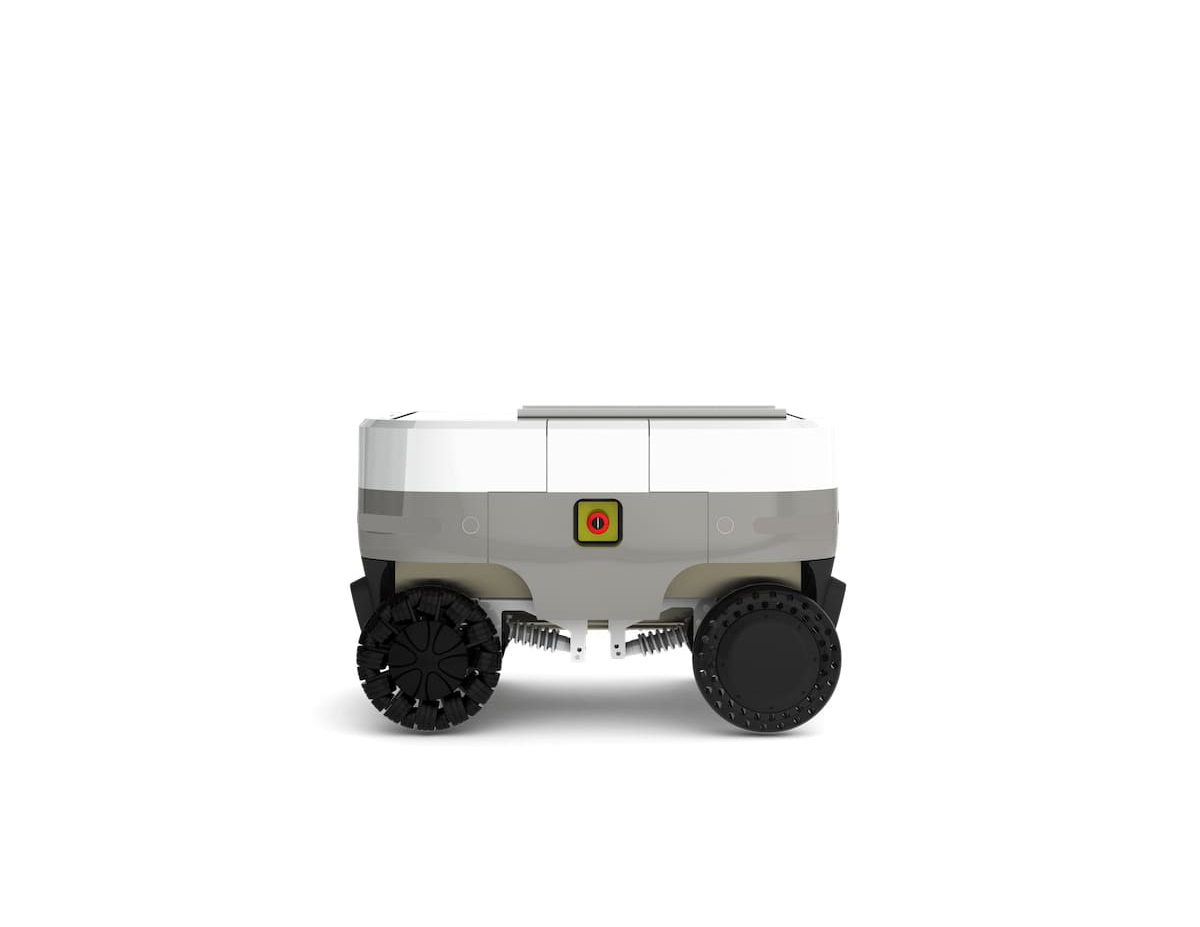

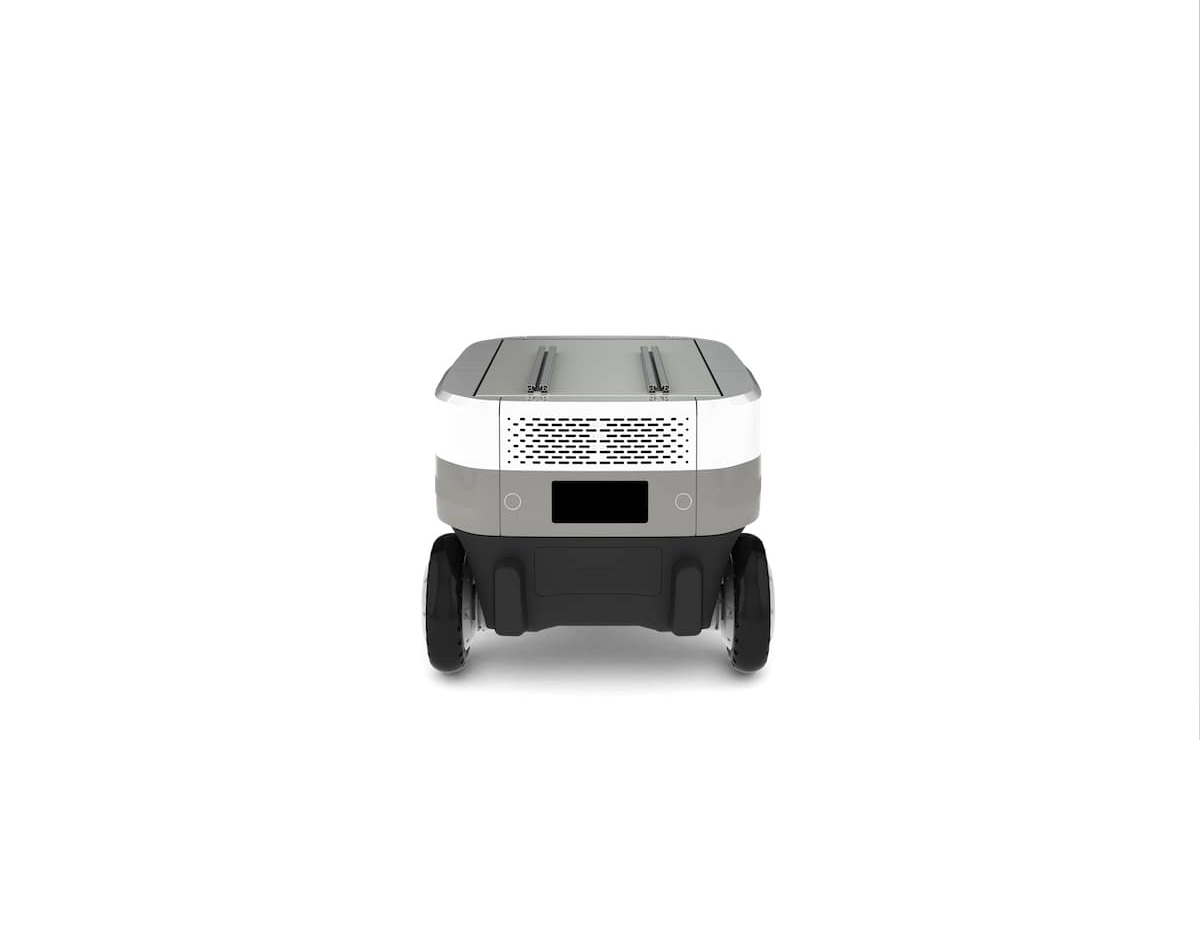

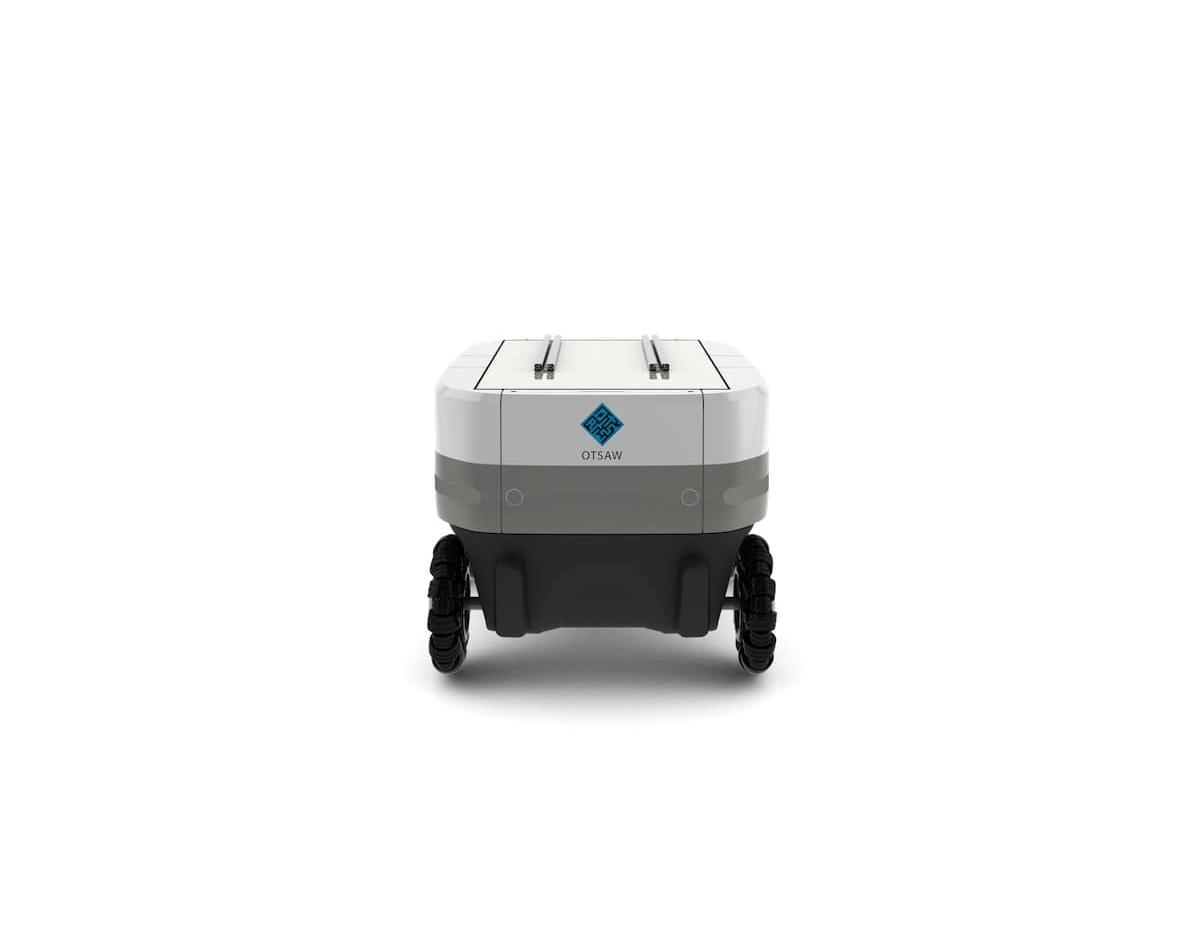

Base

Build Your Robot Foundation

85KG

Payload

8KM/H

Top Speed

10Hours

Operating Time

Base

Ending on 4th Feb

$25,000.00

$

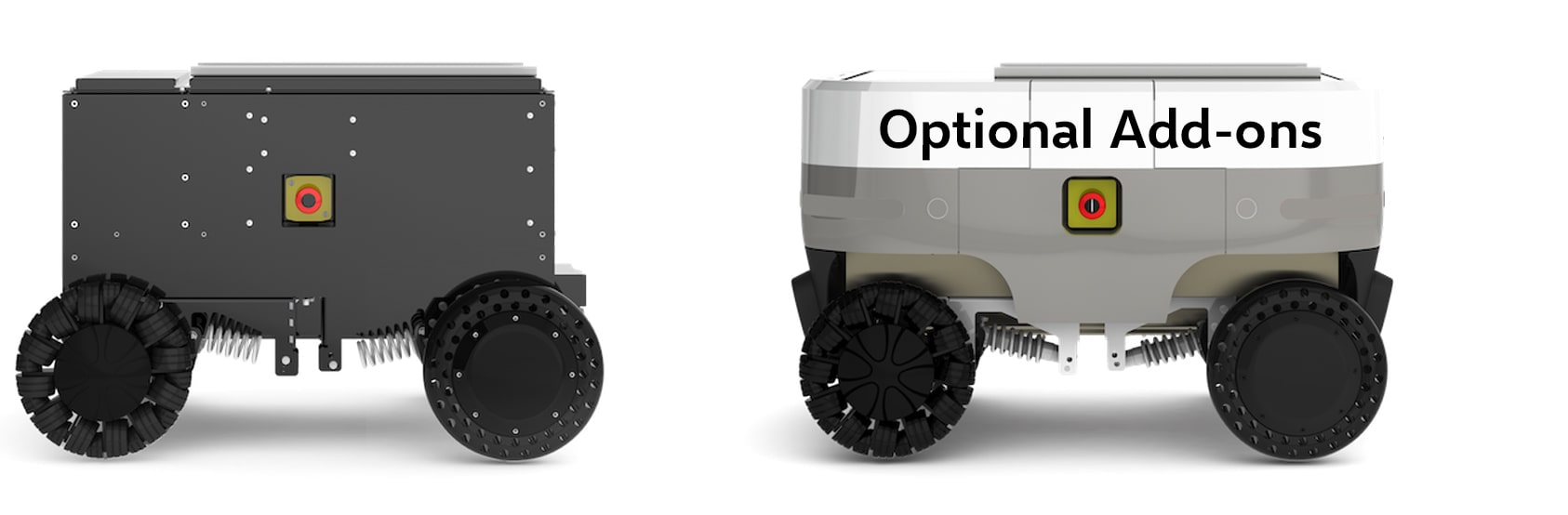

Optional Add-Ons

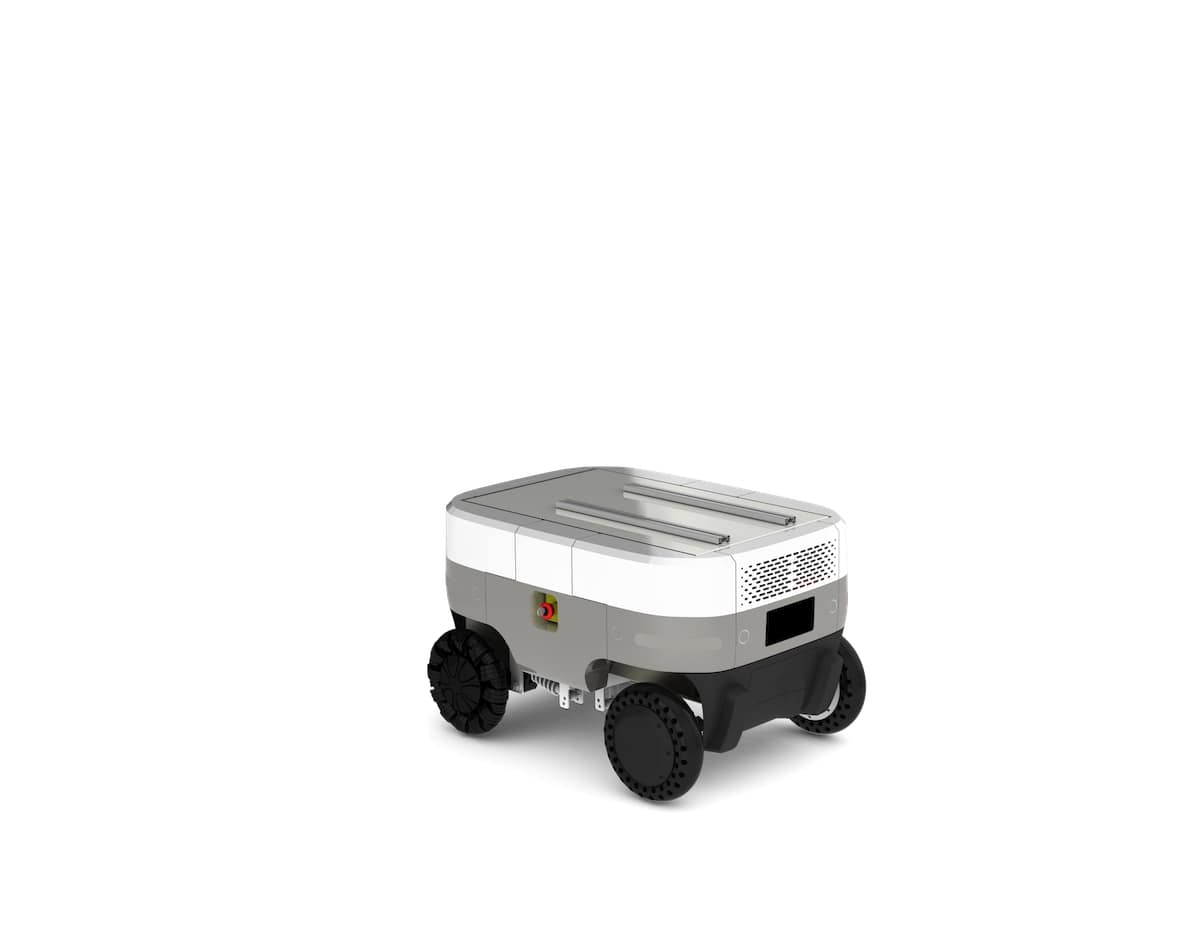

Base Cover

$

Higher Battery Capacity (2kWh)

$

Fast Charging Adapter

$

Platform

Choose Your Robot Application

60KG

Payload

8KM/H

Top Speed

6HOURS

Operating Time

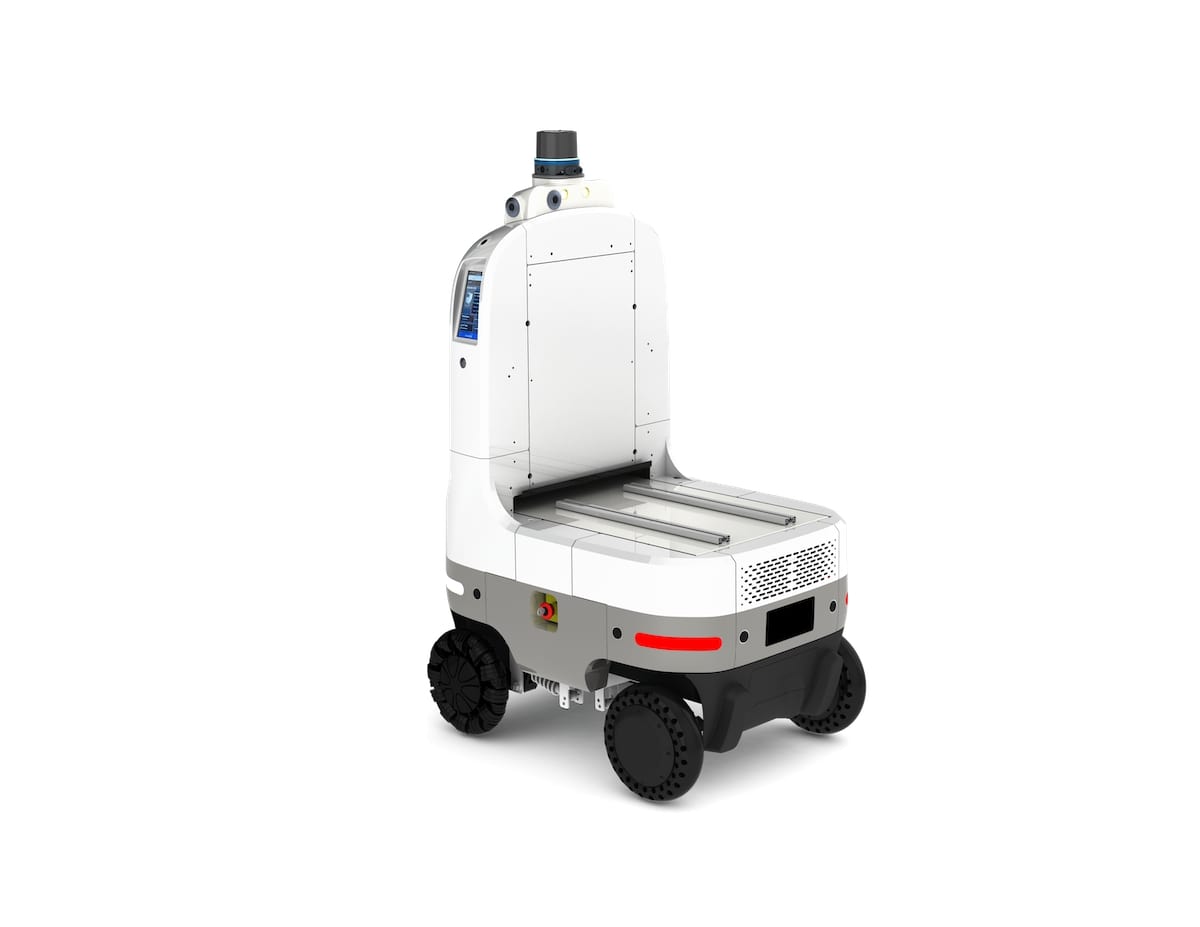

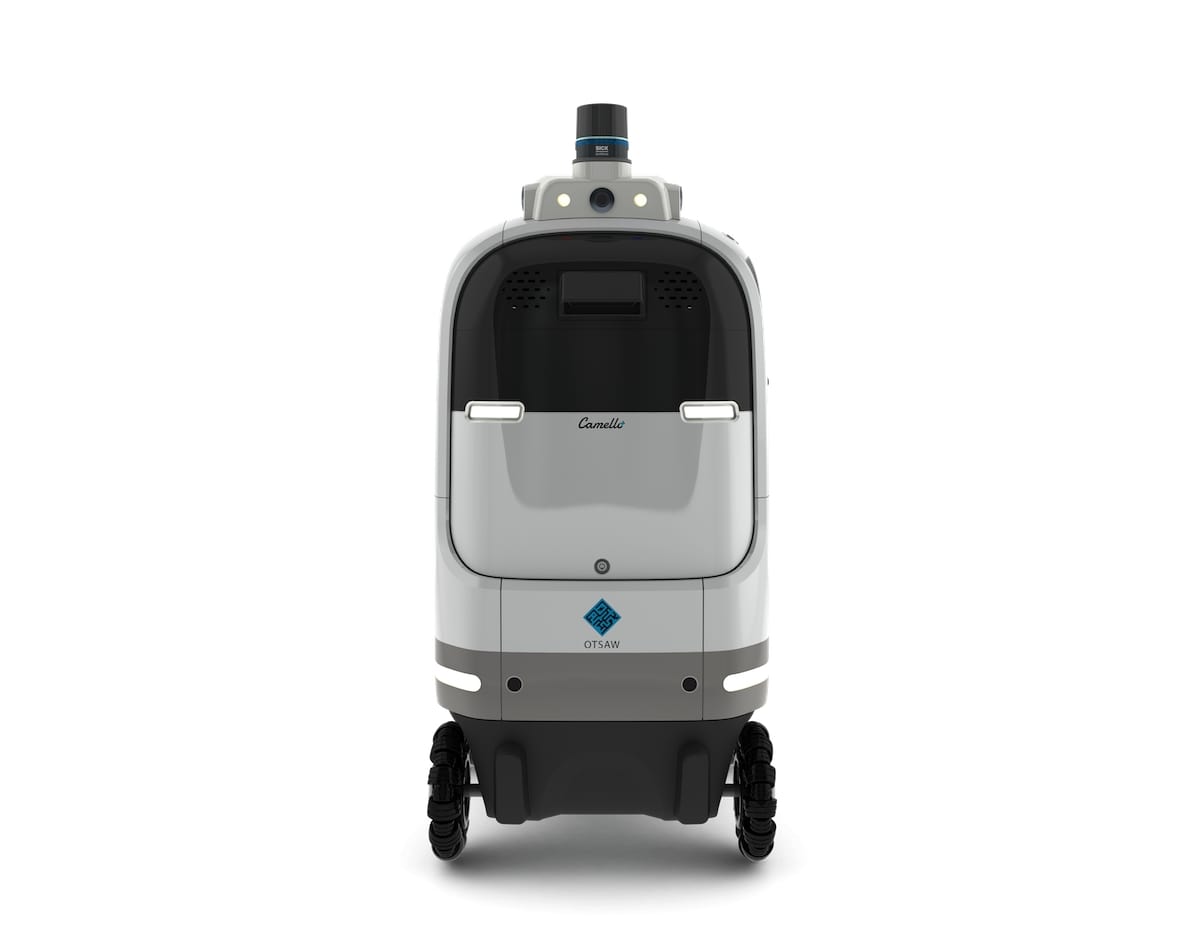

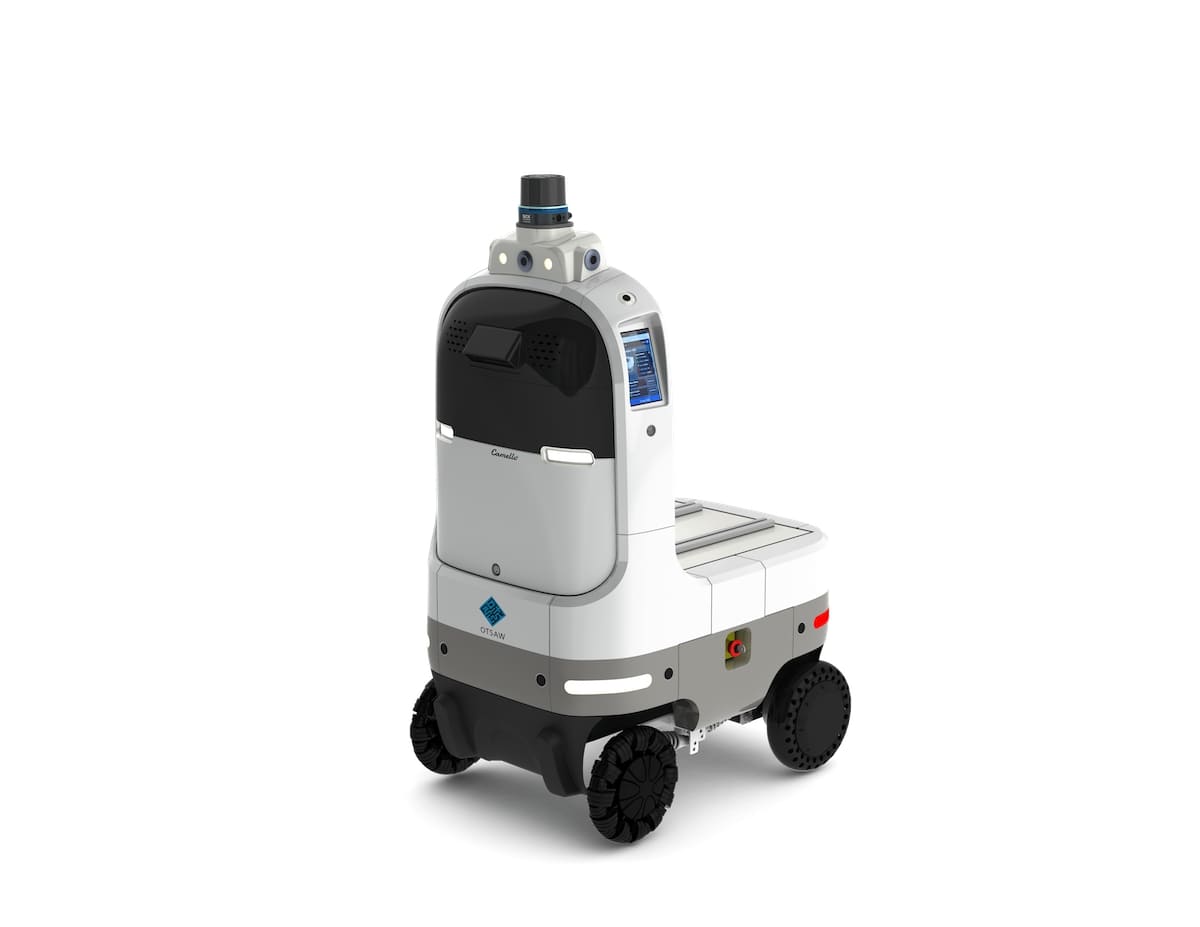

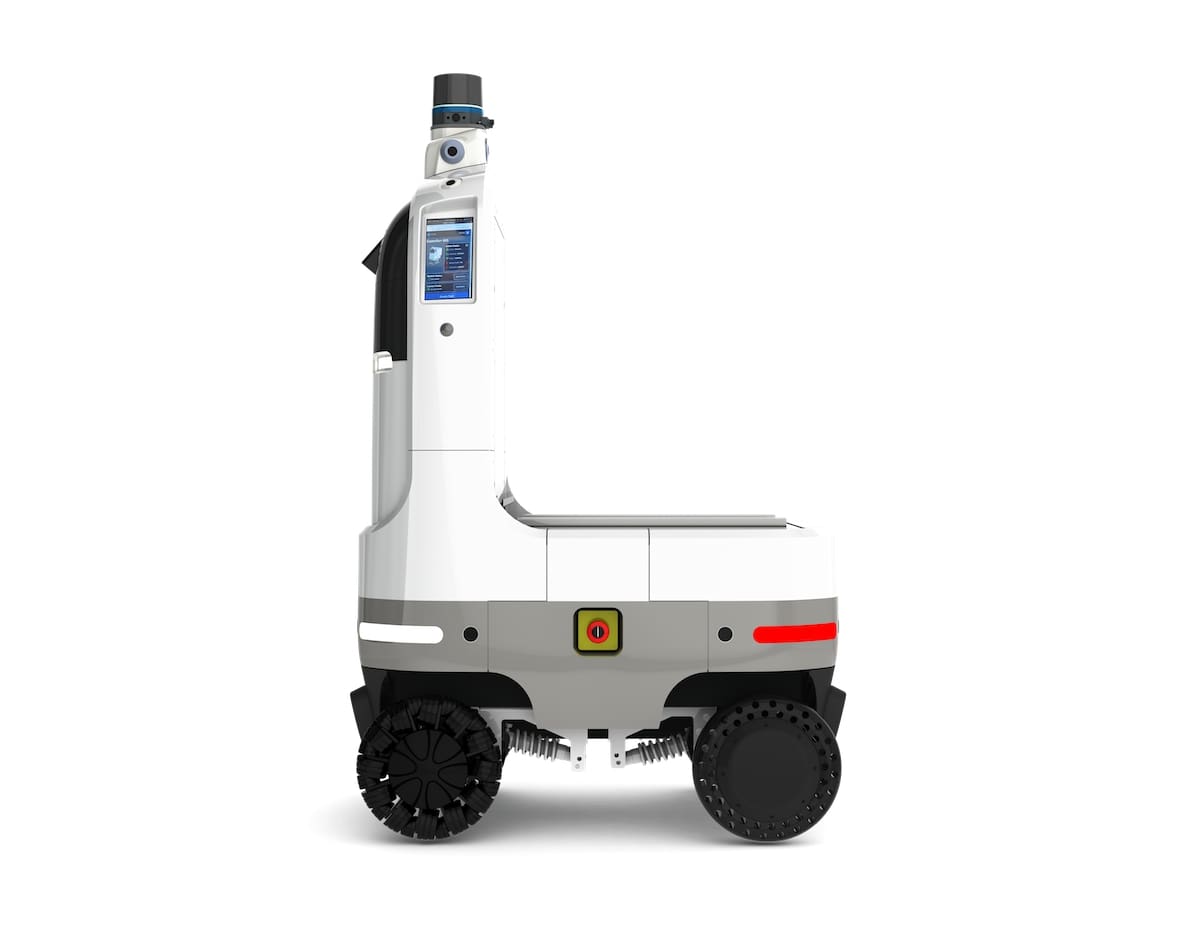

Delivery Platform

$

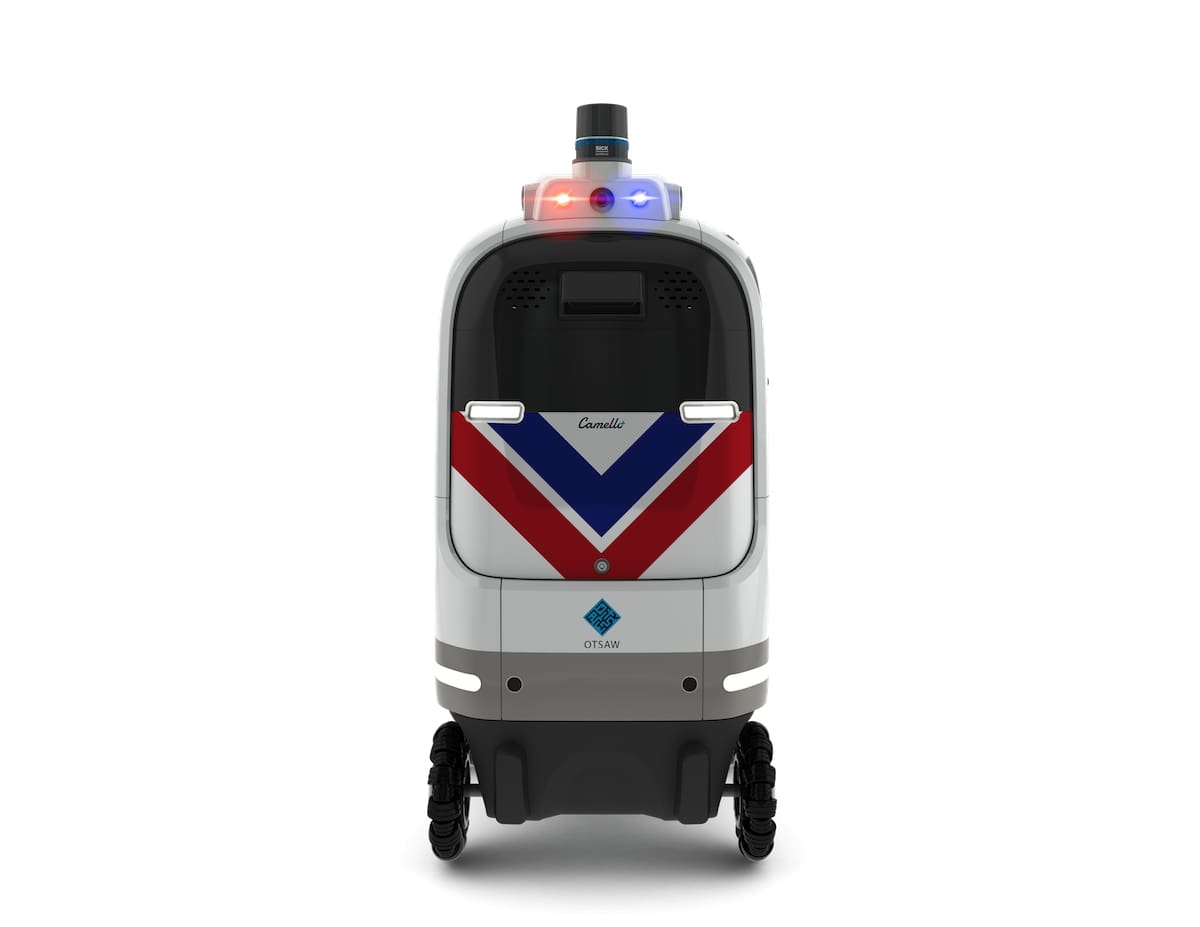

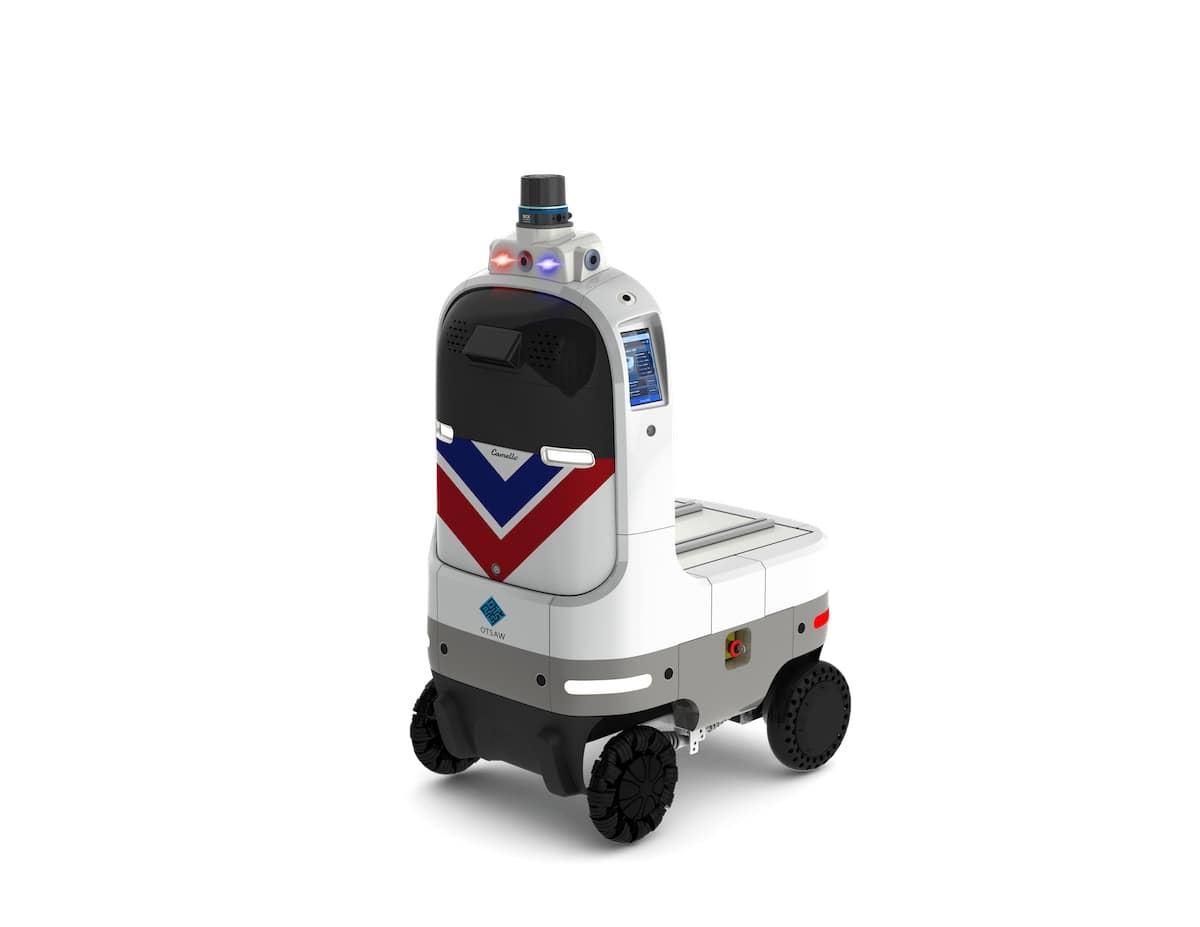

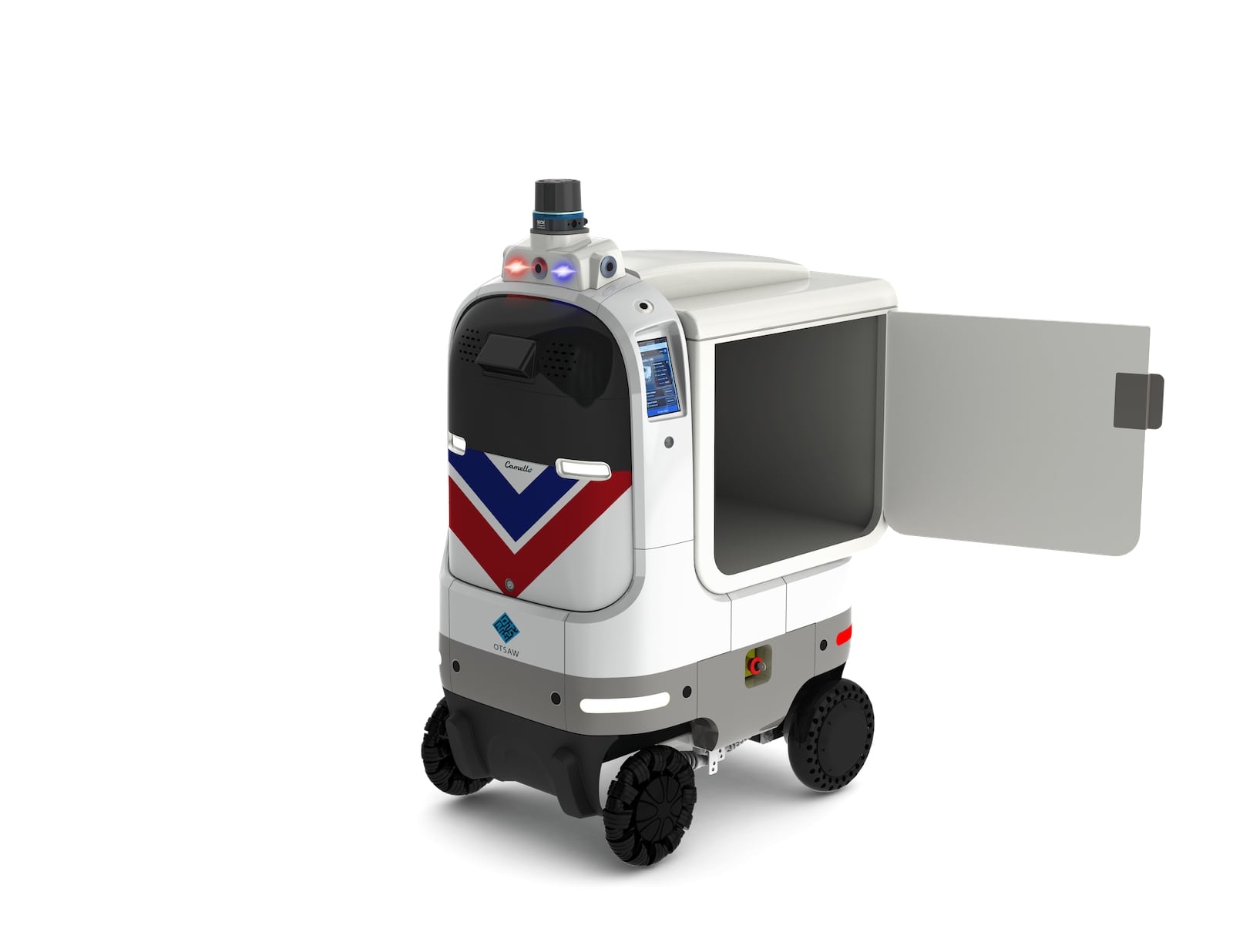

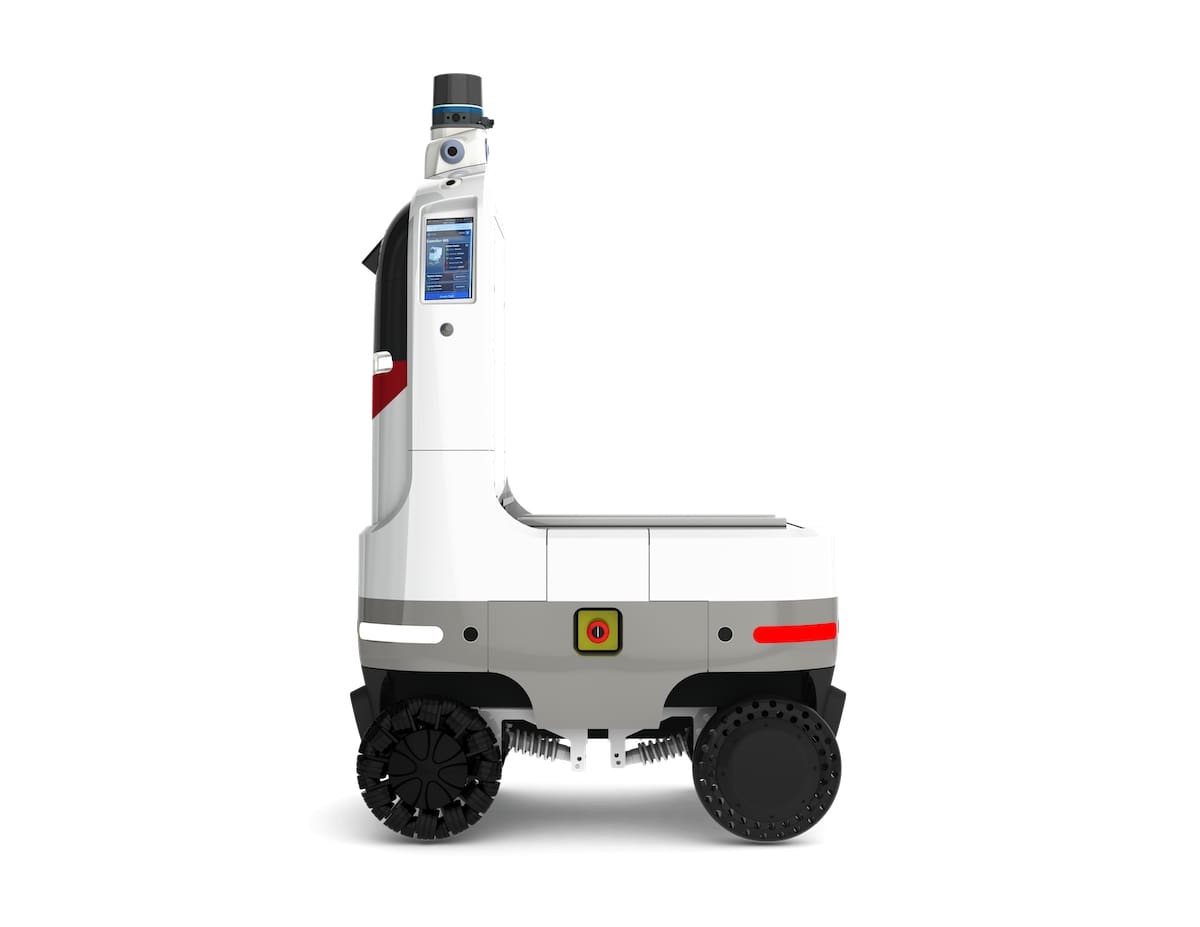

Security Platform

$

Optional Add-Ons

Higher Battery Capacity (2kWh)

$

Wireless Charger

$

Software

FMCS (Delivery): Ensures seamless navigation, efficient task allocation, and real-time monitoring of deliveries.

FMCS (Security): Optimize operations through a patrol scheduling system that enables live video streaming.

Navigation System: Facilitates precise and efficient robot movement within the environment, enabling accurate localization, obstacle detection, and optimal path planning.

FMCS (Delivery)

$

FMCS (Security)

$

FMCS (Delivery + Security)

$

Navigation Software

Limited Period Only! Free with FMCS

$5,000.00

$0.00

Please choose a software package before choosing a module.

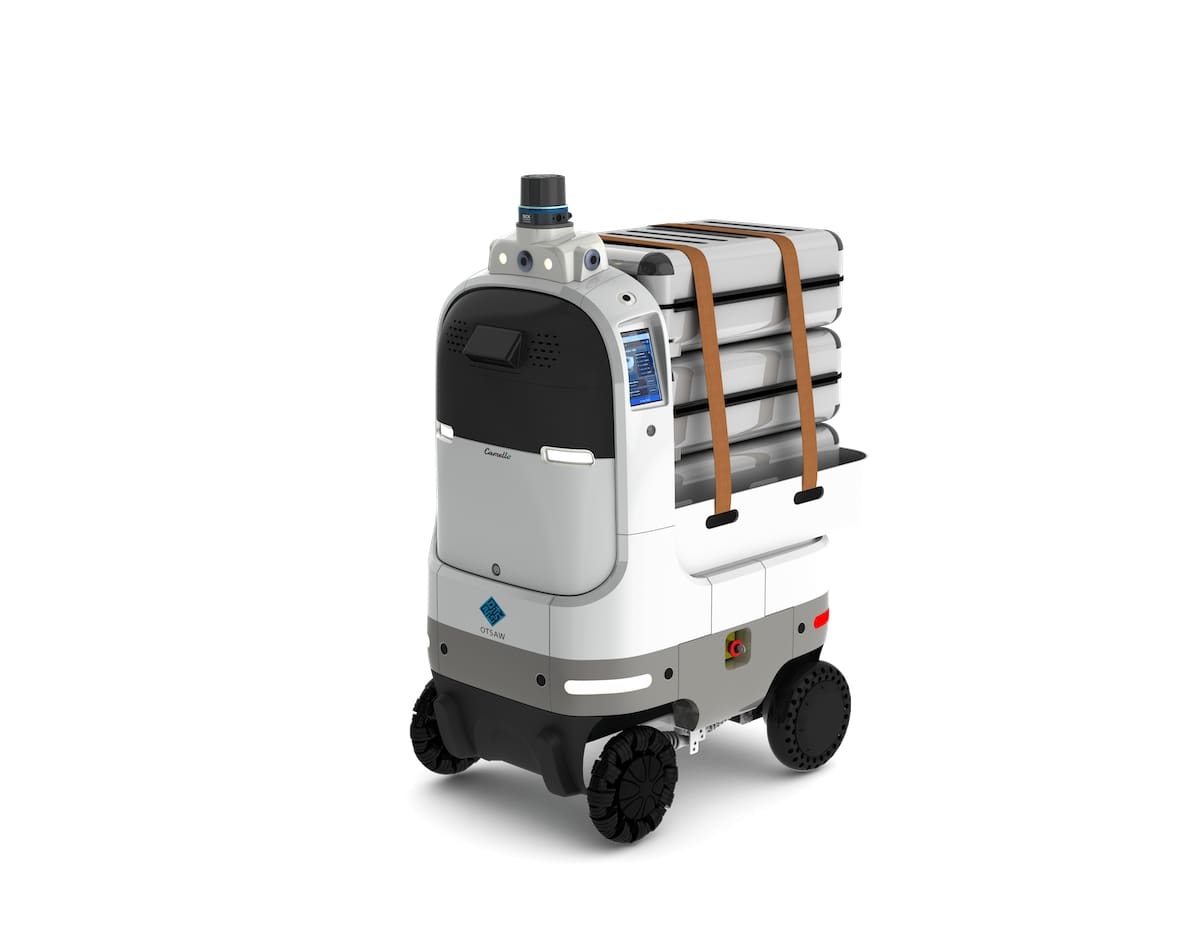

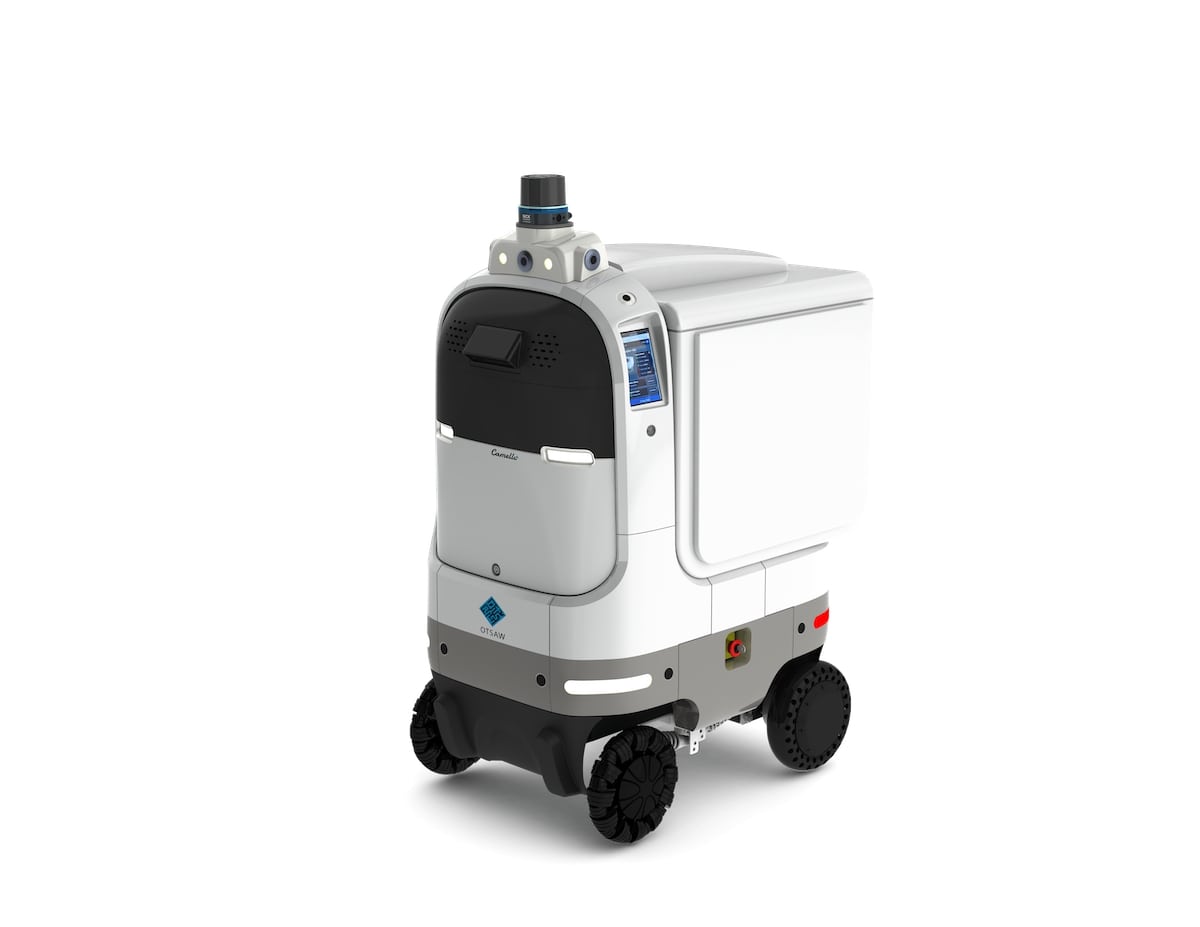

Modules

Select The Right Application Module

50KG

Payload

8KM/H

Top Speed

8HOURS

Operating Time

Standard

$

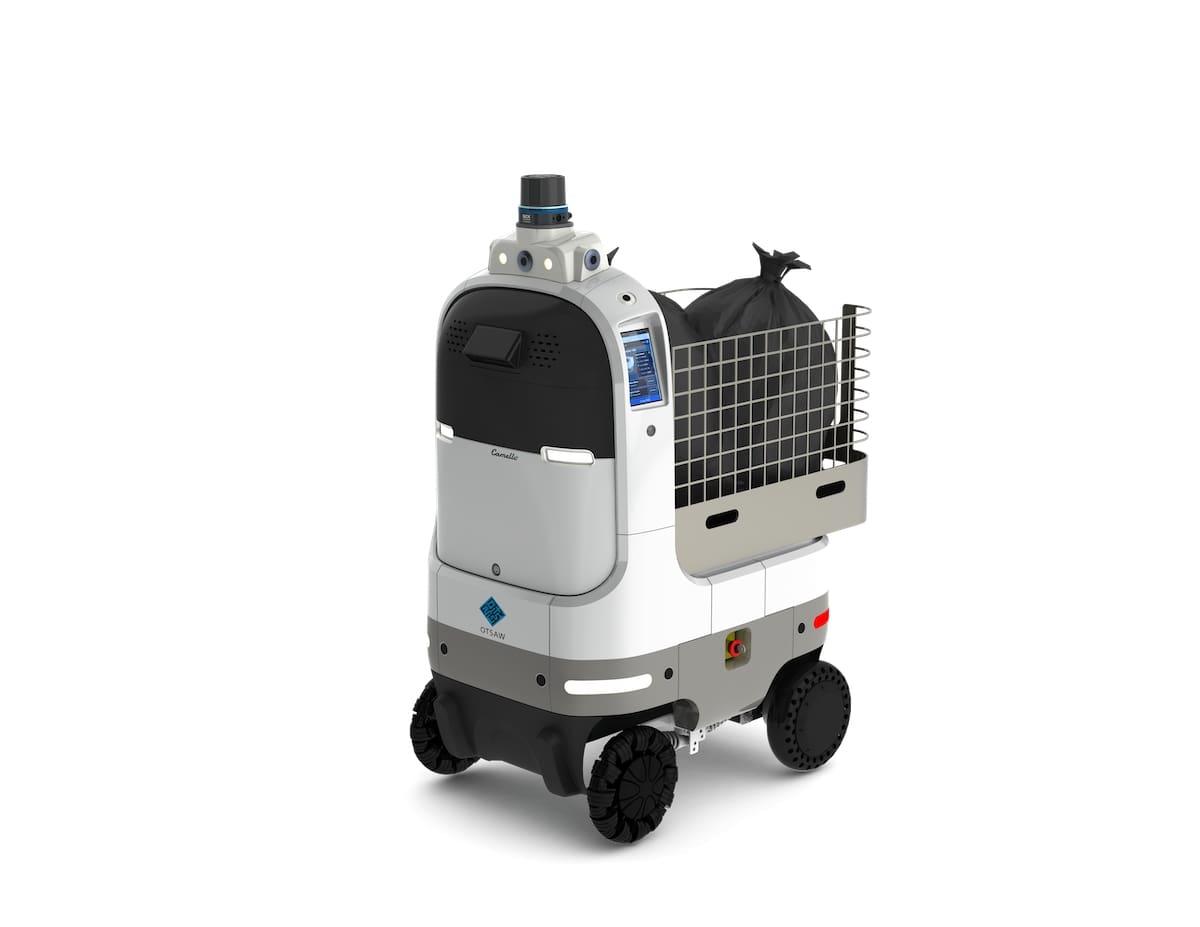

Mesh

$

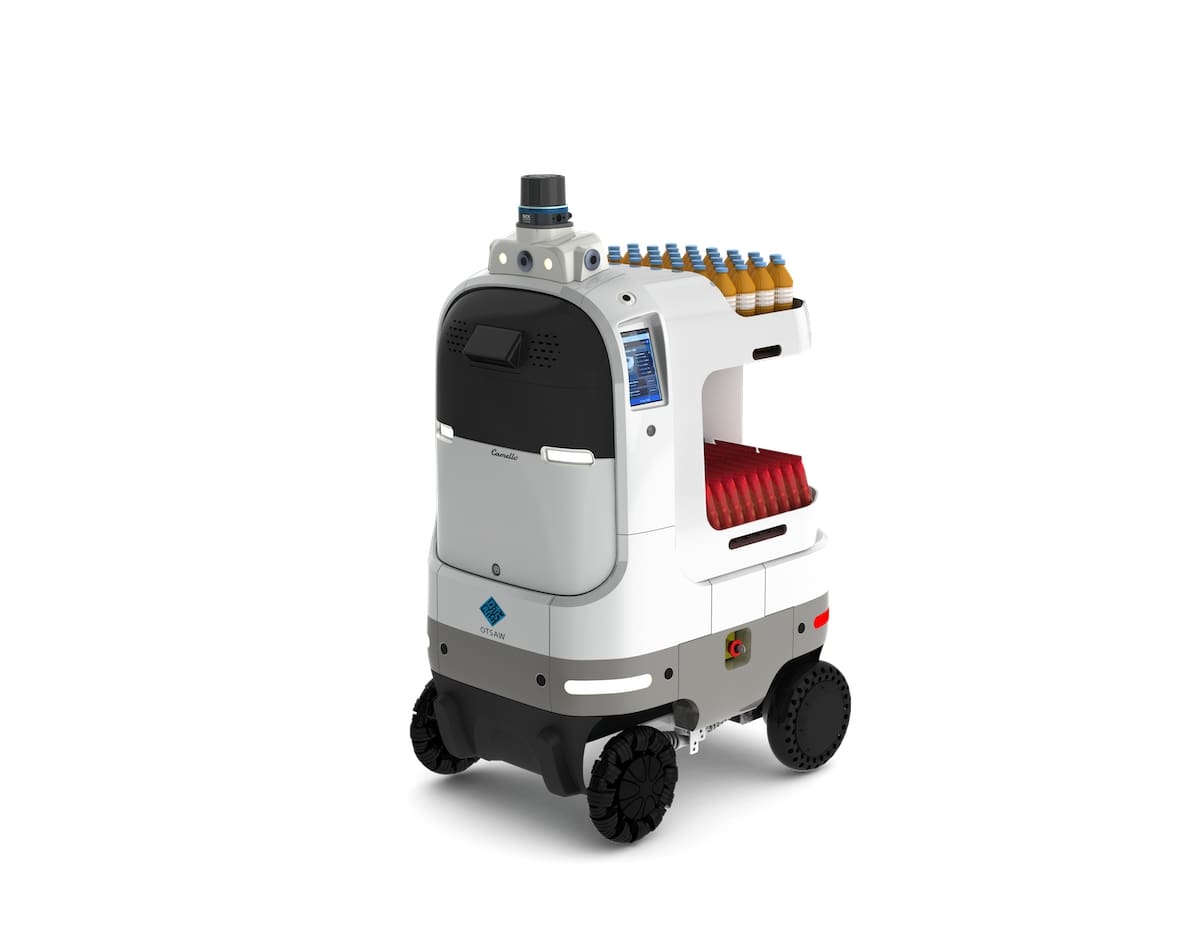

Standard with Shelves

$

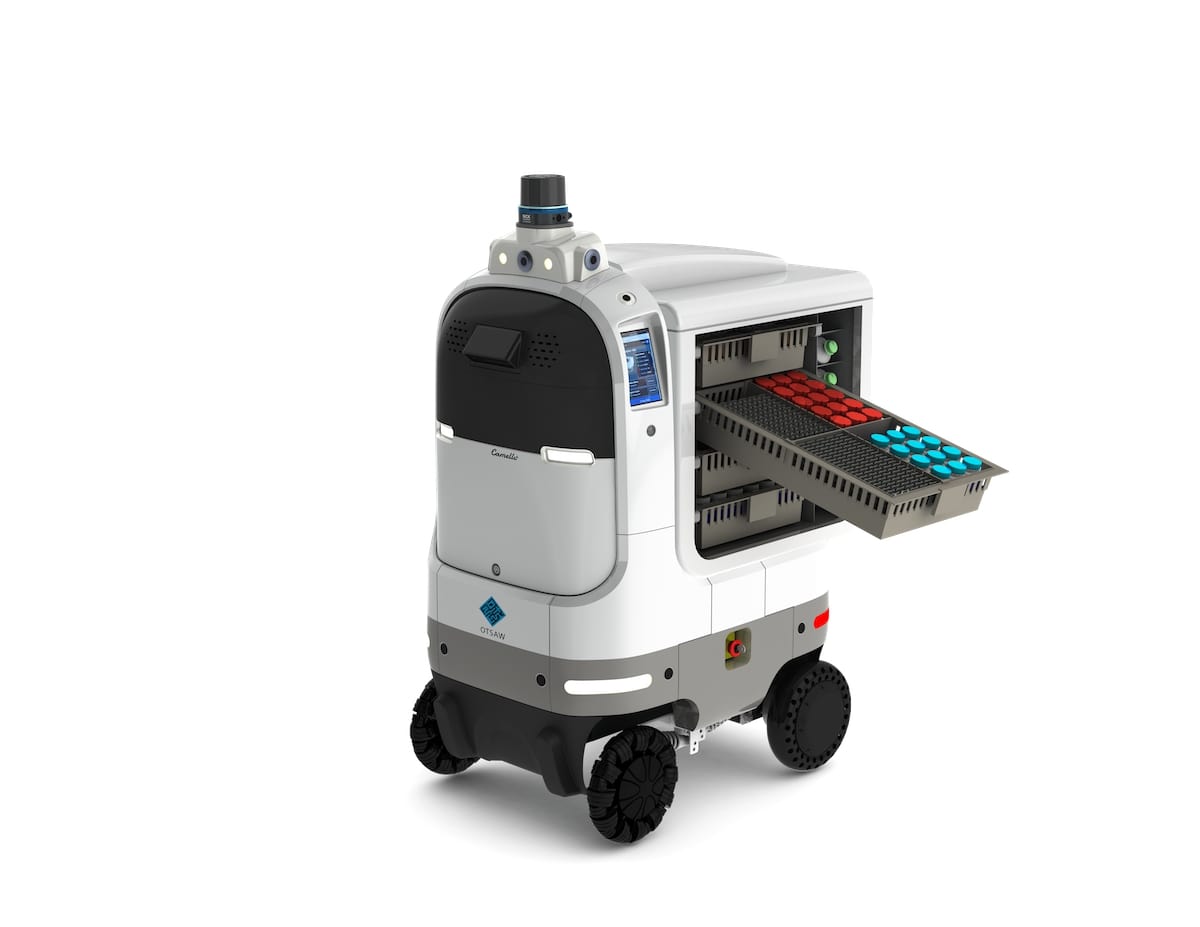

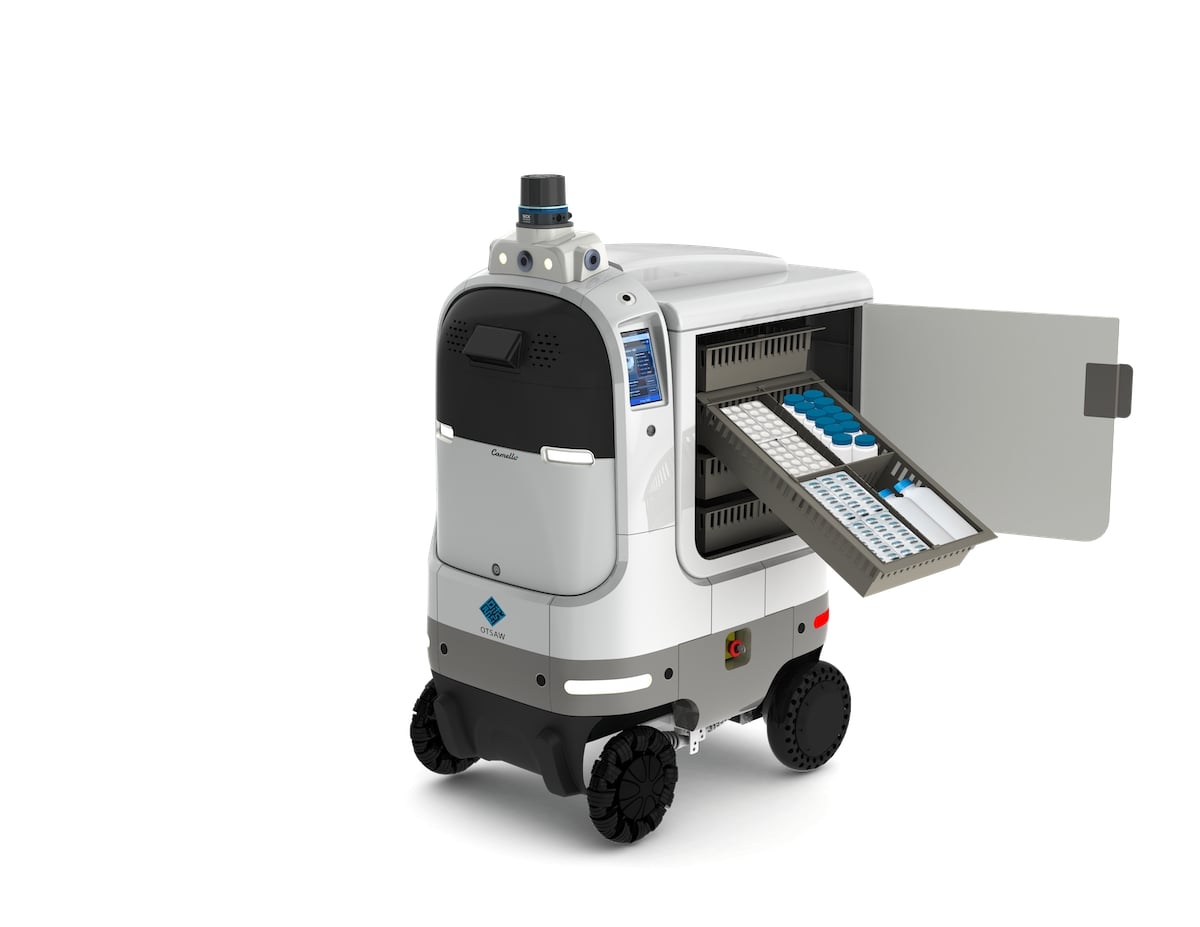

Medical Trays

$

6-Drawers

$

12-Drawers

$

One Robot, Multi-Purpose

Projected Delivery:
6 Months Upon Confirmation

Your

Register Your Interest

Base Info

Base

$0.00

Base Cover

$0.00

Platform Info

Security Platform

$0.00

Module Info

Software Info

Software

$0.00

Total

$0.00

Estimated RasS Payment

Starting From
$3000/mth

Minimum 24 mths Raas Term

*Excluding All Taxes, Insurance, Shipping, Robot Set-up, Infrastructure and Commissioning Costs.

Pre-Order Due

$2,000

*Non-refundable

*By placing an order, I accept the order agreement and conditions stated here.

Base Info

Base

$0.00

Base Cover

$0.00

Platform Info

Platform

$0.00

Module Info

Software Info

Software

$0.00

Total

$0.00

Specifications

Model Type

OTSAW Camello+

Dimension(mm)

900 x 650 x 450

Weight(KG)

70KG

Payload(KG)

85KG

Suspension

Four Wheel Independent Suspension

Braking

Energized Brake (With Fail-Safe Braking System)

Battery Type

ELithium-Ion Phosphate (LiFePO4)

Battery Certified

UL & CE Certified

Battery Capacity

21Ah / 48V (1000Wh battery)

Operating Time (*Exclude Payload)

10 hours

Charging Time

1.5 hours Charging Time

Optional

Upgraded Battery Capacity

42Ah / 48V (2000Wh battery)
3 hours Charging Time
20 hours Operating Time (Exclude Payload)

Upgraded Fast Charging Adapter

Reduce Charging Time by 30%

Other Specifications

IP Protection

IP54

Drive

Rear Wheel Drive

Steer

Differential Drive

Payload(KG)

85KG

Ground Clearance

11.5cm

Climbing Ability

10 Degrees

Speed

Up to 8km/h

Motor Power

400W x 2

Rated Torque

20Nm x 2

Low level CPU

Microcontroller Included

Software

API Included
